Has a manufacturing license from the General Directorate of Medical Equipment of Iran -
2 years warranty and 10 years after-sales service
-
Shockwave Generator Warranty Up to 2,000,000 Shocks
-
Shockwave Therapy Training Book and Periodic Webinars
-
Hours of video and audio training content
-
Knowledge-based physiotherapy equipment designer and manufacturer

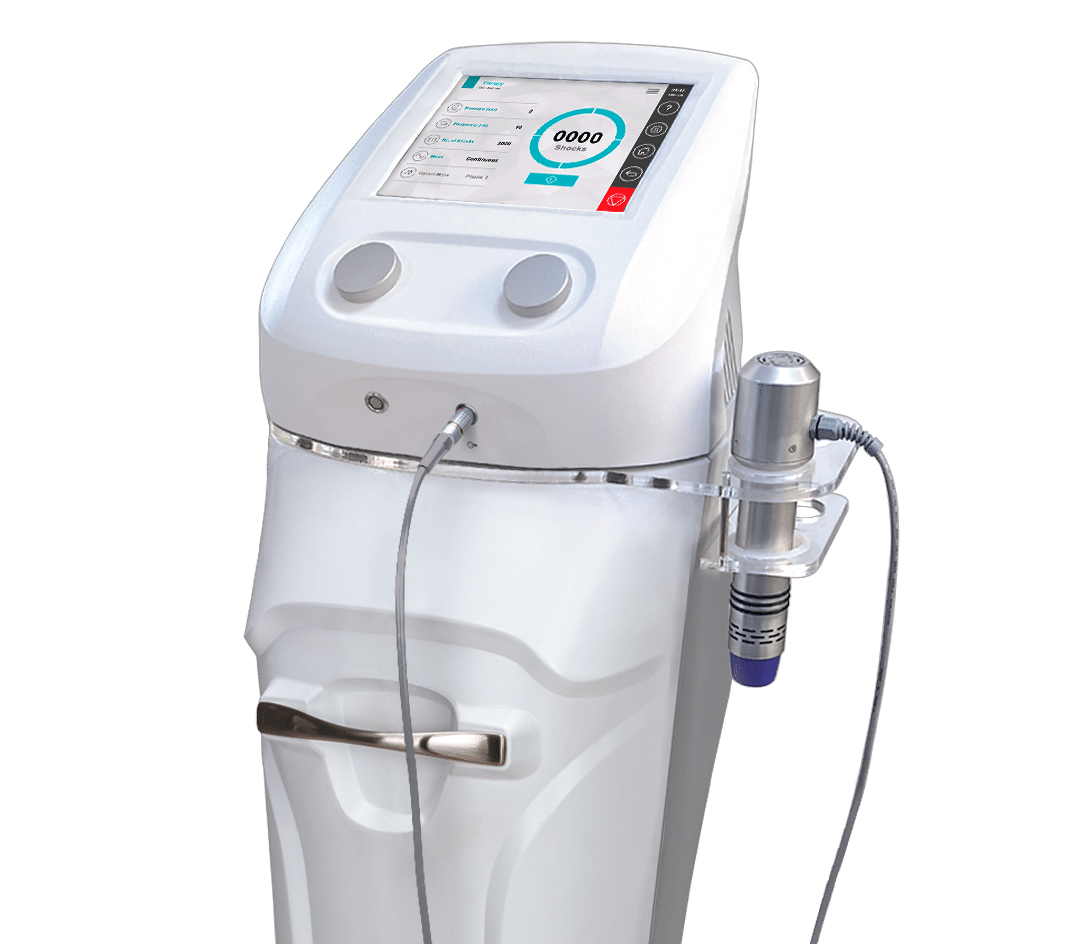

Electromagnetic Shockwave 350G Electromagnetic Shockwave 350G
Shockwave 350G is a radial shockwave device featuring an electromagnetic system, designed and developed as part of the Grand product series by Novin Medical Engineering Company. In 2023 the Shockwave 350G was unveiled as the first domestically manufactured shockwave device by Novin Medical Engineering Company. Since then, it has been utilized in over 600 clinics across both private and public healthcare centers nationwide. The innovative and unique technology of the Grand series is the result of years of continuous effort and dedication by the company’s experienced research and development team.
About modality
One of the newest methods for treating musculoskeletal disorders is the use of shockwave therapy. Shockwave is a powerful wave with high energy and amplitude, and like ultrasound, it is considered a type of sound wave. Shockwaves have a pulsed pattern, meaning that in each shockwave pulse, the pressure rapidly reaches its peak within a very short time (around a few nanoseconds) with a very steep slope. This treatment method is suitable for chronic conditions, recurrent disorders, and cases that have not responded to other treatment methods. Shockwave therapy has various applications in fields such as physiotherapy, sports medicine, aesthetics, and urology.
Therapeutic applications
Shockwave therapy stimulates the body’s natural healing process and reduces the time needed for recovery. Researchers believe that the mechanical energy of shockwaves induces microtrauma and cellular-level damage in the targeted tissue. These micro-injuries lead to the release of angiogenic growth factors, promote neovascularization, and increase blood supply to the targeted tissue.
-
arthritis
-
heel spur
-
Plantar Fasciitis
-
Late-union fractures
-
Cellulite and localized slimming
-
Lateral and medial epicondylitis
-
Reduction of muscle spasm
-
Hamstring tendinopathy
-
Bone regeneration
-
Scar treatment
-
Tendonitis
Product benefits
-
The Shockwave 350G is capable of producing shockwaves with a maximum energy of 185 millijoules and a frequency of 22 Hz.
-
It has Softshot technology that allows for gentle and comfortable treatment of painful areas.
-
It has the ability to apply shock in two ways: Toggle and Momentary.
-
The high-resolution graphic display and the use of capacitive touch technology provide ease of use.
-
For ease of use, the Grand series allows for device software updates via the USB port and Wi-Fi connection.
Standard Accessories
-
Shock series 6, 15, and 25 mm
-
handpiece
-
foot pedal
-
Silicone cups
-
500 ml gel
-
Shockwave Therapy Training Book
Optional Accessories
-
trolley
GUI
-
The appropriate angle of the device's display makes it easy for the therapist to use. The therapist can control the device both in a standing and sitting position without changing the color and transparency of the display and easily apply the necessary settings.
-
Predefined, precise, and effective treatment protocols based on reputable scientific articles
-
Supplementary information includes the number of treatment sessions, treatment session intervals, series size, etc.
-
Guide images for precise handpiece placement and patient positioning during treatment
-
A library of anatomical images of various parts of the upper and lower limbs
-
Providing a wide range of device applications to facilitate communication between therapist and patient
Technical Specifications
| (millijoule) energy | 60 – 185 |
|---|---|
| (Hz) Frequency | 1-22 |
| Therapeutic mods | Continuous |
| Number of treatment programs | 43 |
| Dimensions and sizes of the series | 25mm, 15mm, 6mm |
| Display | Full color, multi-touch, 10-inch range |
| Weight(kg) | Without trolley 4.1 |
Handpiece
The ergonomic design of the handpiece ensures user comfort when holding it from various angles and positions, effectively preventing fatigue or slippage during prolonged treatments.
The shock absorber tip is made of flexible material, which helps reduce the transmission of rebound vibrations caused by the shockwave pulses to the therapist’s hand. This significantly enhances usability during extended treatment sessions.
The handpiece holder is specifically designed to securely accommodate the handpiece, ensuring it remains firmly in place—even under intense movement—thus eliminating the risk of it detaching or falling from the holder.
