CE standard
Manufacturing license from the General Directorate of Medical Equipment of Iran
2 years warranty and 10 years after sales service
Shockwave therapy training book
Hours of video and audio training content
Shockwave Generator Warranty Up to 2,000,000 Shocks

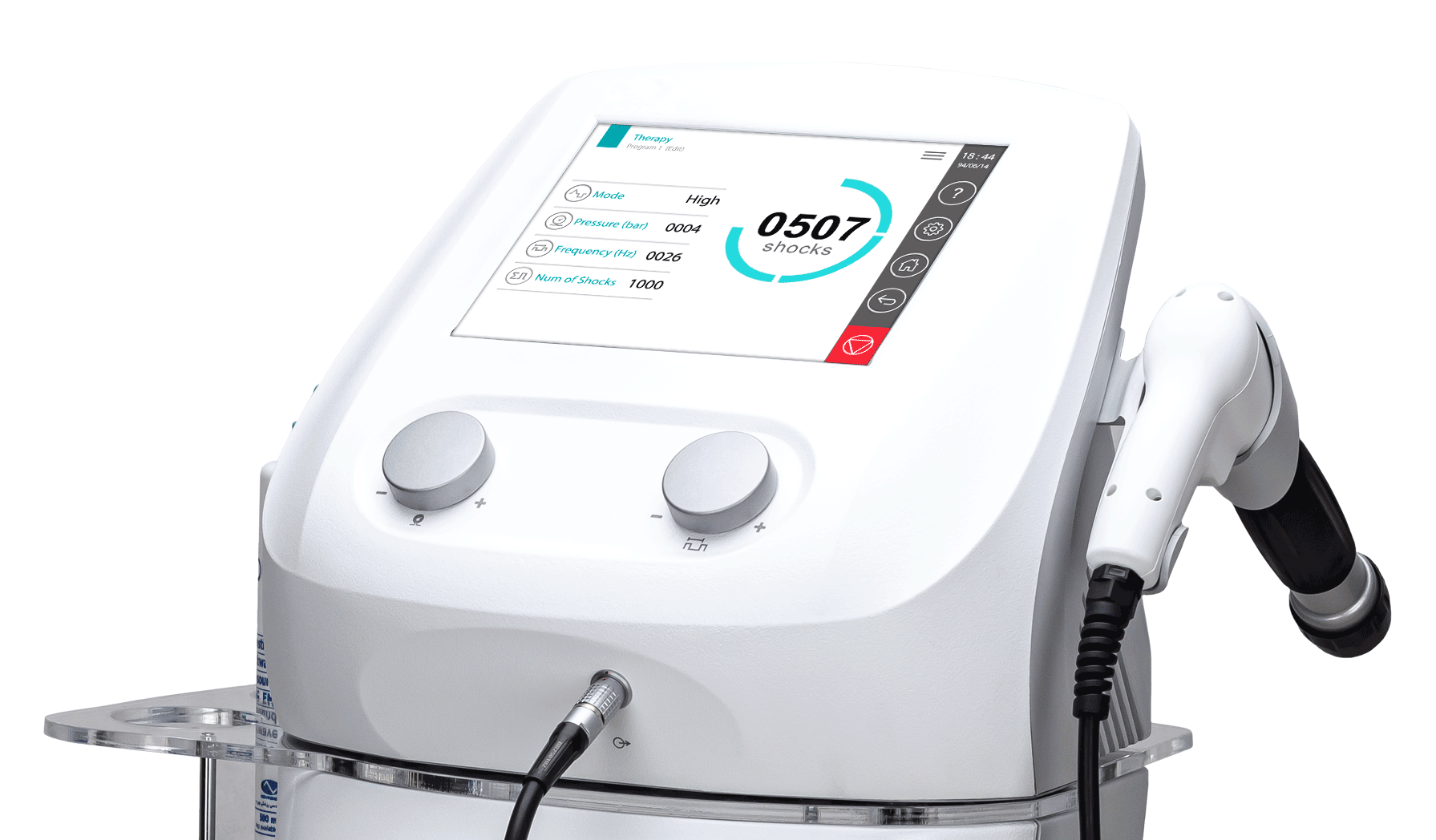

Pneumatic Shockwave 360G Shockwave 360G

360G is a radial shockwave with pneumatic ballistic system, it’s been developed and designed under Grand Series product category of Novin Medical Engineering Company. In 2016, Shockwave 360G was the very first shockwave device manufactured in Iran by Novin Medical Engineering Company. The brand new and unique technology of Grand Series product category of Novin Medical Engineering Company is the result of years of continuous effort and activity of this company’s research and development department.

About Modality

Shockwave therapy is one the newest methods of treating musculoskeletal disorders, they are powerful waves with high energy and a high amplitude, similar to ultrasound waves. A shockwave has an impact pattern, meaning that in each pulse, the pressure of the shockwave reaches its maximum value in a very short time (around a few nanoseconds) with a very steep slope. This therapeutic method is suitable for chronic diseases relapsing diseases, and diseases that have not responded to other treatment methods. The numerous applications of this therapy include physiotherapy, sports medicine, beauty, and urology.

more about the Grand series

Therapeutic applications

Shockwave therapy stimulates the natural healing process in the body, reducing the time required for recovery. Researchers believe that the mechanical energy of shock waves causes Microtrauma and cellular damage to the target tissue. These injuries result in the secretion of Angiogenic Growth Factors, increasing Neovascularization and blood supply to the target tissue.
This type of therapy has been used to treat conditions such as:

Arthritis
Heel spurs
Plantar fasciitis
Muscle spasms
External and internal Epicondylitis
Delayed fracture healing
Bone repair
Tendonitis

Features:

The Shockwave 360G is capable of producing shock waves with a maximum pressure of 5 bar and a frequency of 22 Hz.
The high-resolution graphical display and the use of capacitive touch technology provide ease of use.
For ease of use in the Grand series, the device software can be updated via the USB port and can also be connected to Wi-Fi.

Standard Accessories

Shock transmitter heads (9-15-15) mm
Ergonomic Handpiece
Footswitch
Generator
500 ml Gel
Handpiece holder
Shockwave therapy training book

Optional Accessories

Trolley (Optional)

GUI

Suitable angle of display on the device to make it easy for the therapist to use. The therapist can easily adjust the necessary settings on the device, whether in a standing or sitting position without changing the color and transparency of the display.
Therapeutic protocols are pre-defined, accurate, and effective based on credible scientific articles.
Additional information includes the number of treatment sessions, intervals between therapy sessions, series size, etc.
Guideline images for the exact placement of the Handpiece and displaying the patient's position during treatment.
A library of anatomical images of various parts of the body.
Offers a wide range of device applications to facilitate communication between the therapist and the patient.

Technical Specifications

pressure (bar)	1-5
frequency (Hz)	1-22
Mods	Continuous Single Variant 3 Burst Modes (with 4-8-12 pulses)
Preset Protocols	۴۸
Shock transmitter heads	9,15,25
Display	Full color, multi-touch, 10-inch screen
weight (Kg)	Without trolley 8.3 With a trolley, about 20.6
Standards	IEC 60601-1, IEC 60601-1-2, IEC 62304, IEC 62366

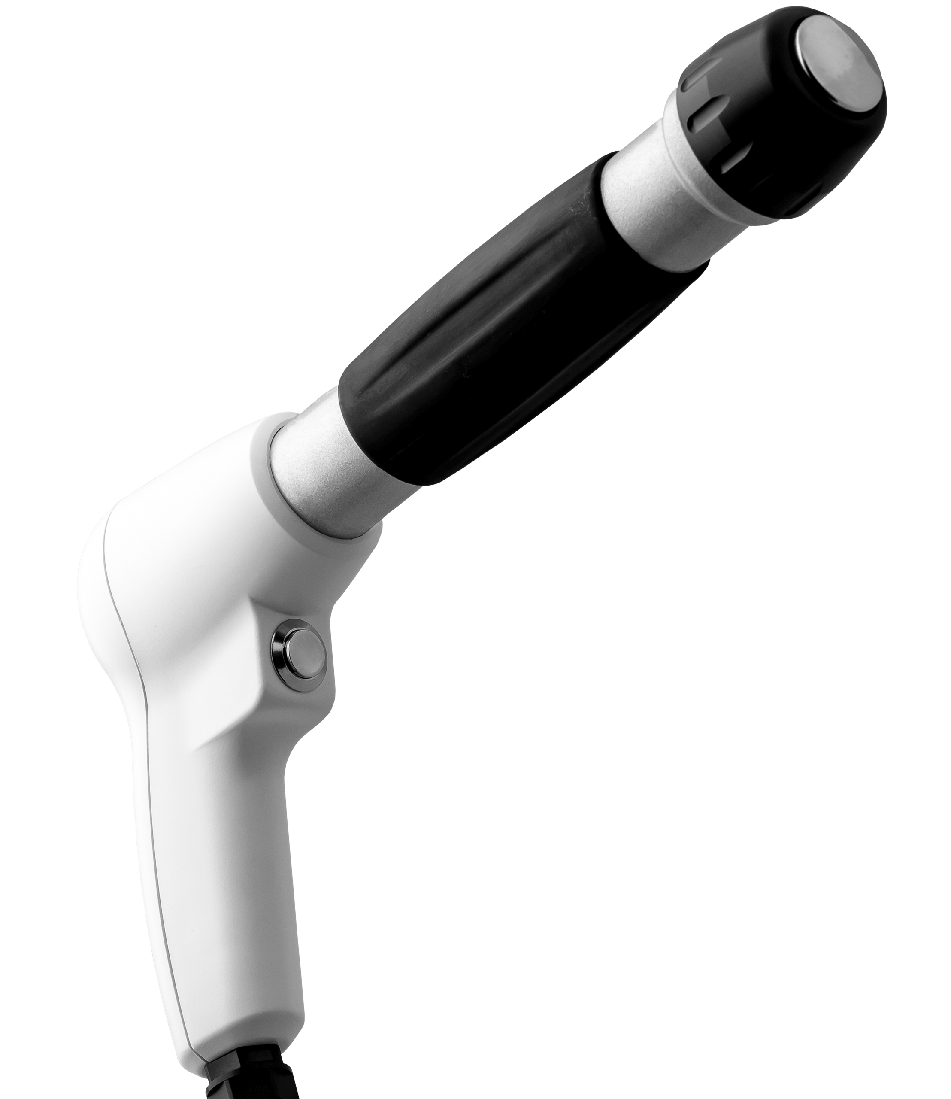

Handpiece

The ergonomic design of Handpiece provides comfort for the user in different directions and methods, as well as prevents fatigue or slipping of the Handpiece from users’ hands during long-term use in treatment.
The flexibility of the shock series prevents the transfer of shock-induced vibrations to the therapist’s hand, which improves usability for longer treatments.
The Handpiece holder is designed and made in a way that the Handpiece easily fits into it and even under severe shocks, it does not detach from the device and makes falling from the holder impossible.
